Mibay · LNG-600-I High Vacuum Exhaust Unit for Large-Scale Industrial Vacuum Processing
Mibay LNG-600 I High Vacuum Exhaust Unit for Large-Scale Industrial
关键规格
型号LNG-600
品牌Mibay
抽速18 m³/h (mechanical pump)
极限真空≤3×10⁻⁵ Pa
配件匹配 · 询价确认
价格询盘 支持B2B批量
交期随报价确认产品描述

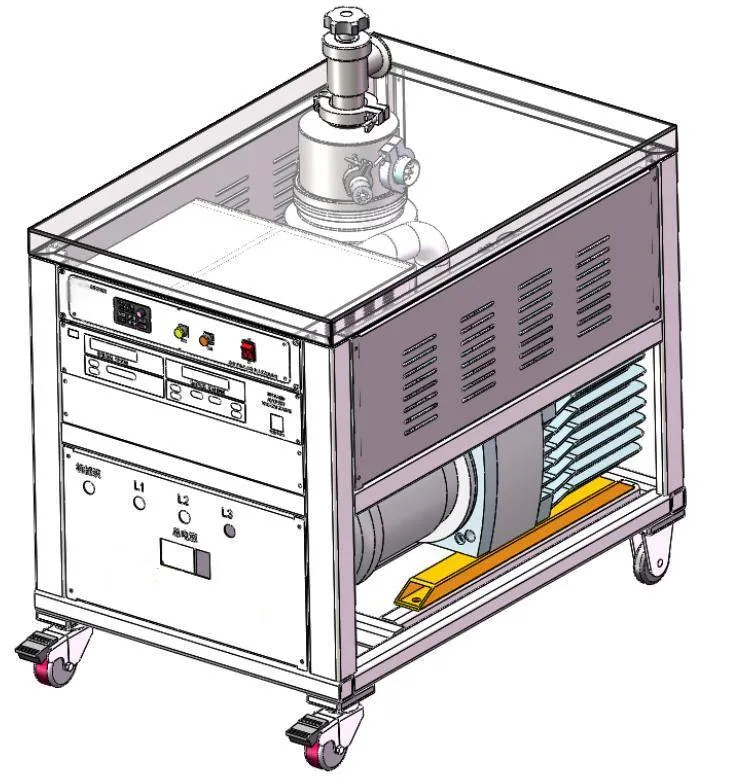

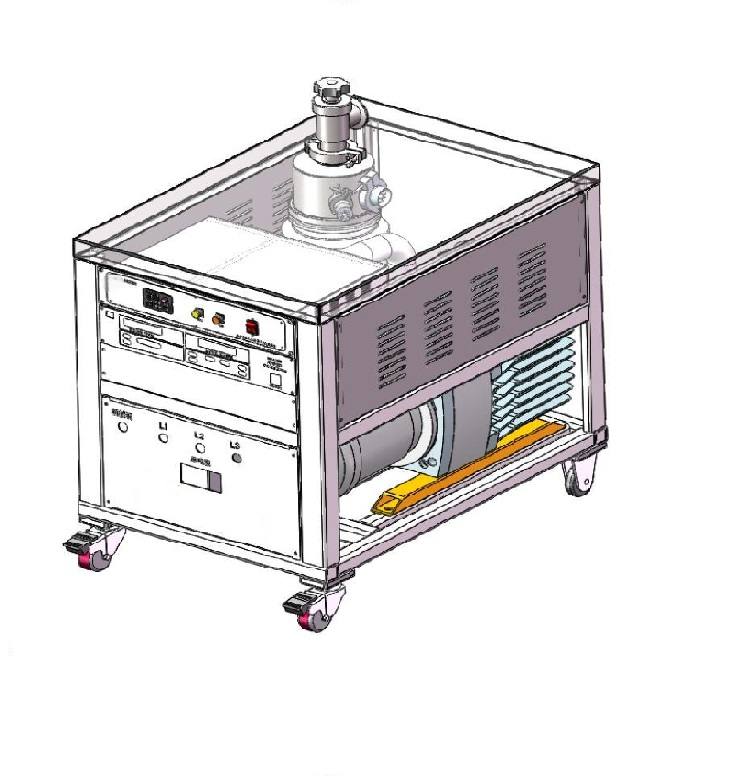

The LNG-600-I High Vacuum Exhaust Unit combines an 18 m³/h mechanical pump with a 600 L/s molecular pump, achieving an ultimate vacuum of 3×10⁻⁵ Pa. Designed for industrial applications, it features a robust mobile platform and is ideal for semiconductor, coating, and scientific research industries.
技术参数
| 规格 | Value |
|---|---|
| 产品类型 | High Vacuum Exhaust Unit |
| 极限真空 | ≤3×10⁻⁵ Pa |
| Roughing Pump Speed | 18 m³/h (mechanical pump) |
| 分子泵转速 | 600 L/s (nitrogen) |
| Vacuum Achievement Time | 5×10⁻⁴ Pa in ≤30 minutes |
| Measurement Range | 1×10⁵ to 1×10⁻⁵ Pa |
| Startup Vacuum | Better than 3×10⁻³ Pa at 400 Hz |
| 电源 | 380V, 50Hz (industrial-grade) |
| 系统重量 | ≈150 kg |
| 外形尺寸 | Refer to outline dimension diagram |
| Mobile Platform | Industrial trolley with brake-equipped casters, ≥200 kg capacity |
| Test Hood | 304 stainless steel, 180 mm diameter × 138 mm height |
| 工作温度 | 5–40°C |
| 最大湿度 | 80% |
