Mibay LNG-1200/1600 High Vacuum Exhaust Unit for Large-Scale Vacuum Systems
关键规格
型号LNG-1200/1600
品牌Mibay
抽速1200 L/s / 1600 L/s
极限真空≤3×10⁻⁵ Pa
配件匹配 · 询价确认
价格询盘 支持B2B批量
交期随报价确认产品描述

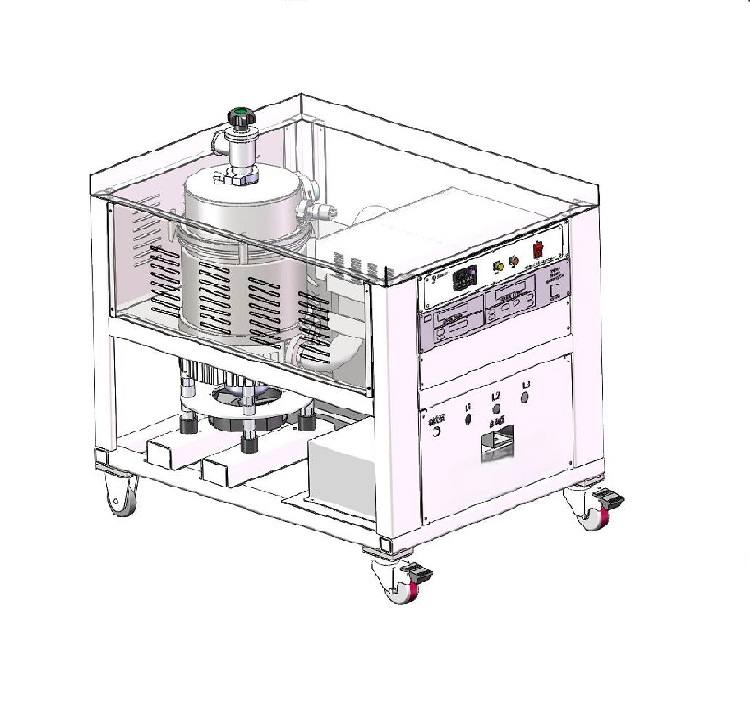

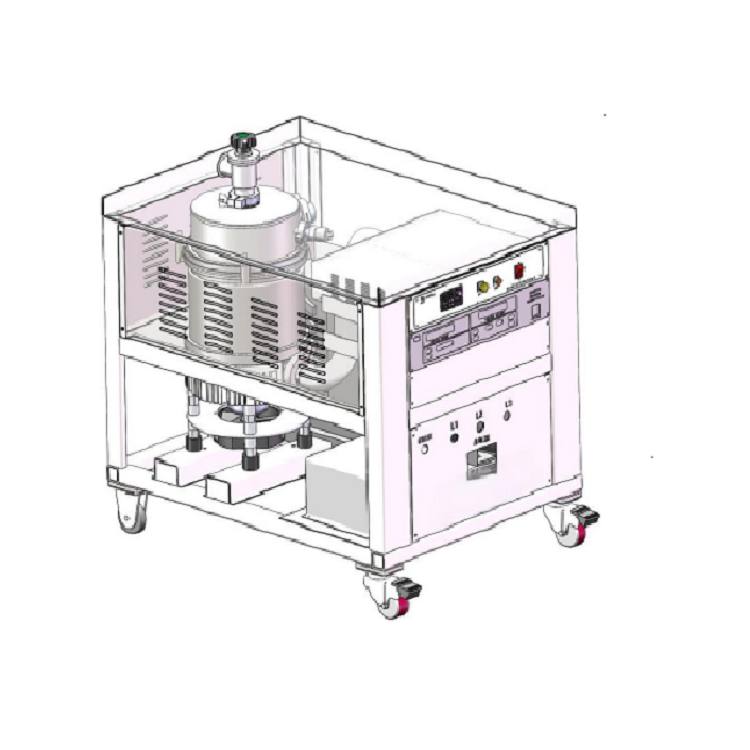

The LNG-1200/1600 High Vacuum Exhaust Unit delivers powerful 1200/1600 L/s pumping speed and large 240/290mm test chambers. With air-cooled molecular pumps and industrial-grade reliability, it’s ideal for aerospace, semiconductor, and scientific research.
技术参数
| 规格 | Value |
|---|---|
| 产品类型 | High Vacuum Exhaust Unit |
| Molecular Pump Model | JTFB-1200F / JTFB-1600F |
| 分子泵转速 | 1200 L/s / 1600 L/s |
| 极限真空 | ≤3×10⁻⁵ Pa |
| Forepump Speed | 18 m³/h |
| Forepump Ultimate Pressure | ≤0.5 mbar |
| Test Chamber Size | Ø240mm×120mm or Ø290mm×125mm |
| Vacuum Gauge | KF40 Ionization + KF16 Thermocouple |
| Measurement Range | 1×10⁵ to 1×10⁻⁵ Pa |
| Cooling System | Composite Air-Cooled |
| Startup Vacuum (400Hz) | Better than 3×10⁻³ Pa |
| 电源 | 380V, 50Hz |
| Platform Load Capacity | ≥250kg |
| Bellows Specification | DN40, 500mm |
| 外形尺寸 (L×W×H) | Contact for details |
| 工作温度范围 | 5–40°C |
| 最大湿度 | 80% |
