Vacuum Units & Systems
Vacuum Units & Systems 17 products
Turnkey vacuum pumping units and systems — pump, roots booster, valves and control assembled and tested as one skid.

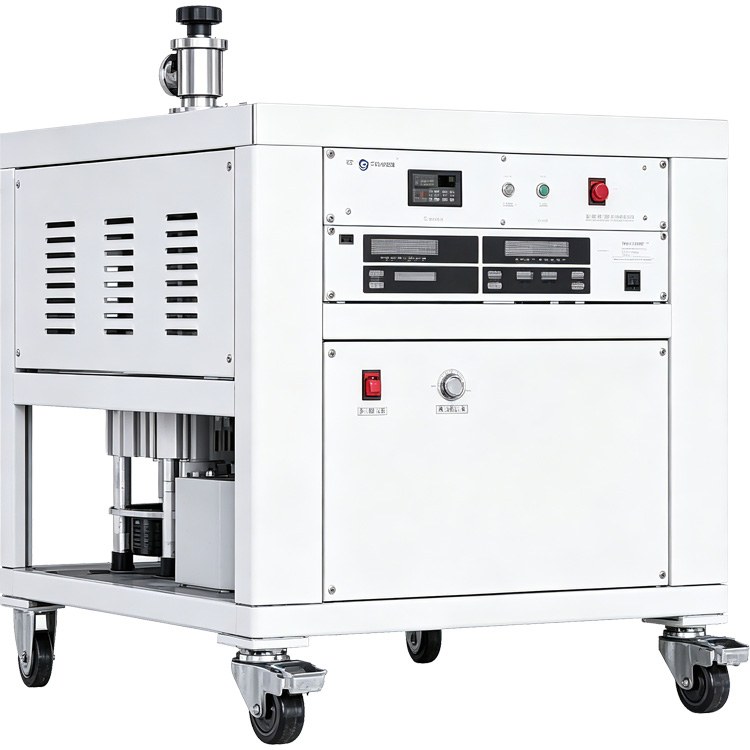

EquipLead time on quote1200 Series

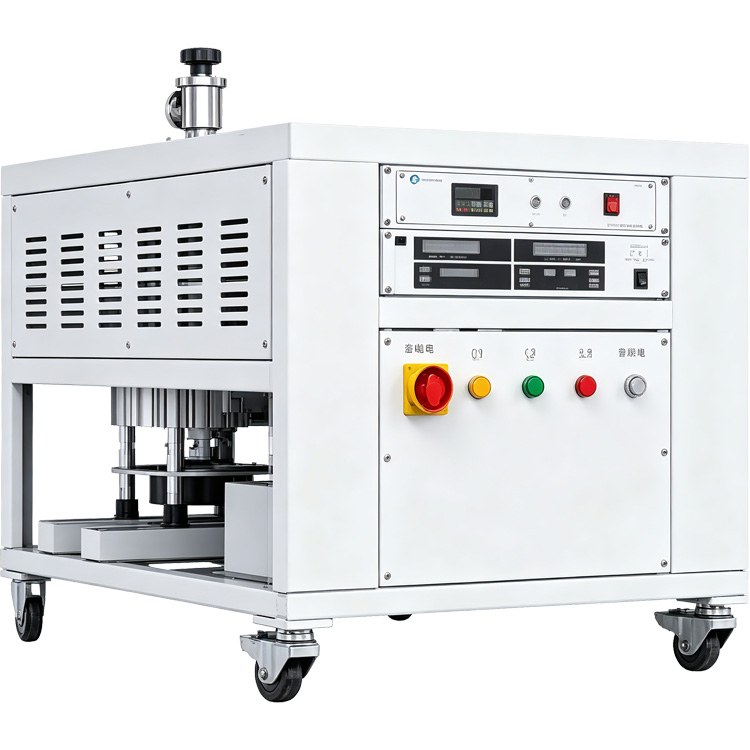

EquipLead time on quote1600 Series

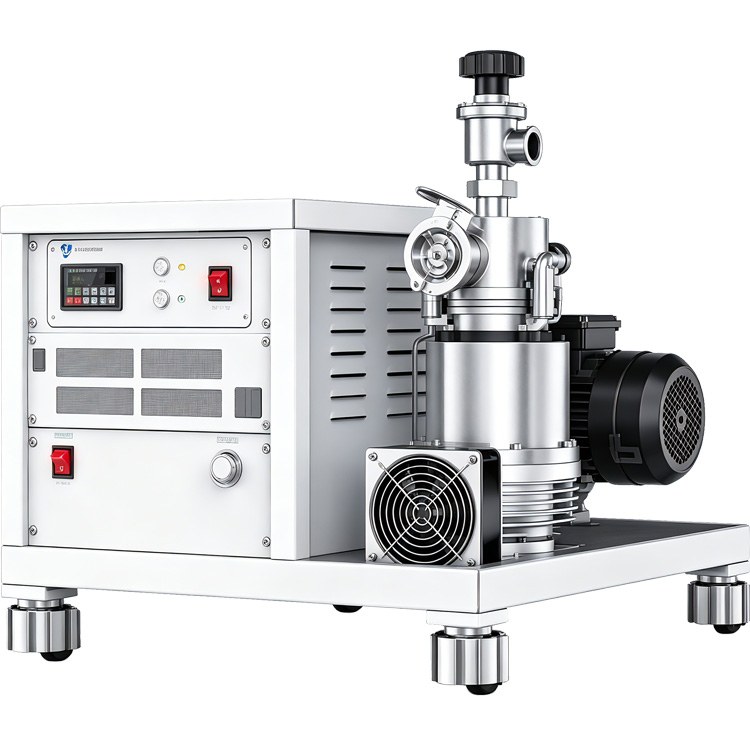

EquipLead time on quote300 Series

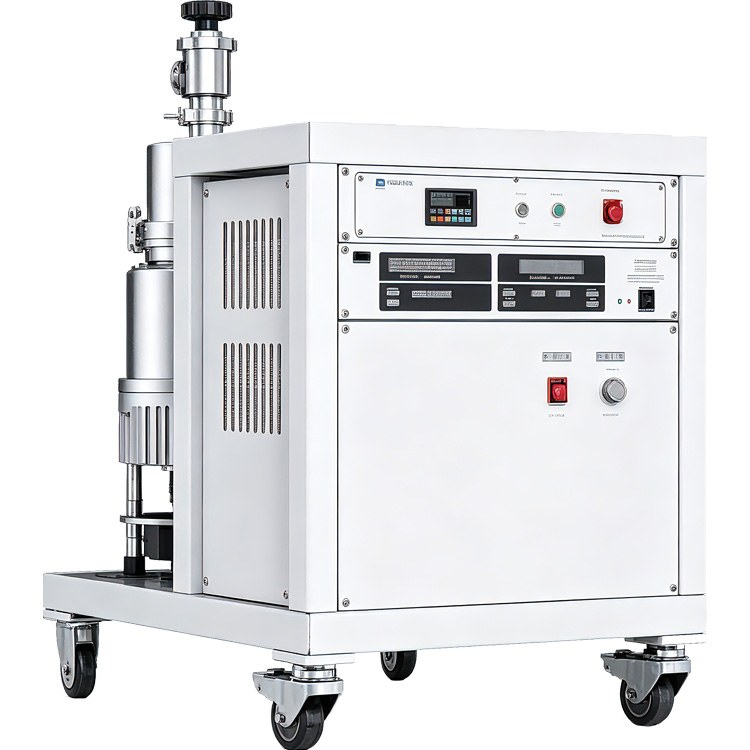

EquipLead time on quote600 Series

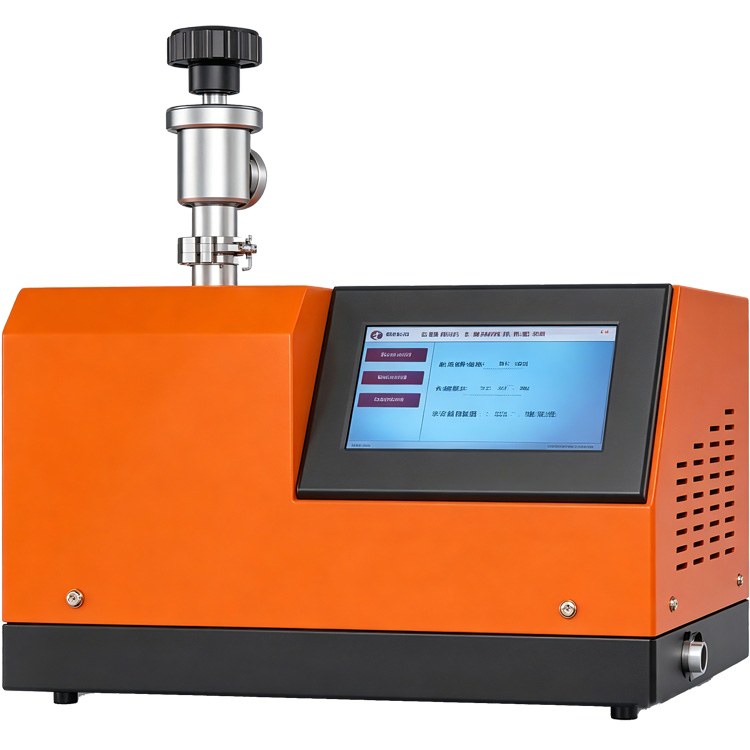

EquipLead time on quote80 Series
EquipLead time on quoteHigh Vacuum Unit (Medium-Low P
EquipLead time on quoteJTFB-600F Composite Molecular Pump
EquipLead time on quoteLNG-1200/1600
EquipLead time on quoteLNG-600
EquipLead time on quoteNon-Standard Ultra-High Vacuum
EquipLead time on quotePump station FJ-110, Water /Ai
EquipLead time on quotePump station FJ-620 with RV-6
EquipLead time on quotePump station FJ-700, water coo
EquipLead time on quotePump station FJ-80, Compact oi
EquipLead time on quoteTXFJ-300 Ultra-High Vacuum Pum
EquipLead time on quoteTaixing Big Speed High Vacuum
EquipLead time on quoteY-Type High Vacuum Exhaust Uni
Specifying a vacuum pumping unit
A pumping unit is a matched set — pump, booster, valves, gauges, control and frame — commissioned as one machine rather than assembled on site. The value is in the matching: backing pump speed against booster displacement, crossover pressures, interlocks and the sequence that gets from atmosphere to base pressure without stalling or overheating anything.
Read the full guide →FAQ
What is included in a vacuum pumping unit?
A backing pump, usually a Roots booster, the interconnecting piping, isolation and bypass valves, gauges, a control panel and the frame — assembled, wired and tested as one unit. What you specify is the duty point; we size the components around it.
Why buy a unit instead of assembling the pumps myself?
Because the interlocks are where self-assembly usually goes wrong: the booster must not start before the backing pump has pulled the system down, the bypass must open on high differential pressure, and the valve must close on power loss. A tested skid has that logic built in and proven before it ships.
Can a unit be built for corrosive or explosive service?
Yes — corrosion-resistant wetted parts, purge gas, chemical-duty seals, and ATEX-rated motors and instrumentation where the zone requires it. Send the gas composition, temperature and area classification along with the duty point.
What information do you need to size a unit?
Chamber or process volume, target pressure, acceptable pump-down time, the gas load once at pressure (leaks, outgassing, process gas), gas composition and temperature, plus site utilities — voltage, frequency, cooling water availability.
