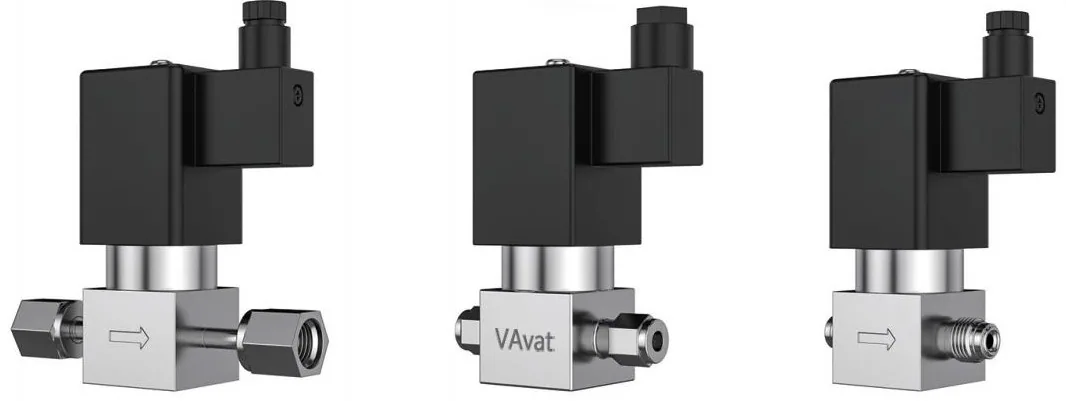

VAvat DJ2CV-UG6.0~10.0 电磁截止阀
关键规格
型号DJ2CV-UG6.0~10.0
品牌VAvat
抽速50 SLM
接口 / 连接Φ6 / Φ8 / Φ10 (optional as required)
配件匹配 · 询价确认
太星有对应替代型号 — 性能相当,价格低得多 →
价格询盘 支持B2B批量
交期随报价确认产品描述
Good corrosion resistance and sealing performance. Higher frequency and better sensitivity. Material: 316L. Opening diameters: 接头通径 6.0~10.0, 1/4", 1/4" VCR 阴 Female, 1/4" VCR 阳 Male.
技术参数
| 系列 | VAvat |
|---|---|
| 通径 | 6.0~10.0 · 1/4" · 1/4" VCR Female · 1/4" VCR Male |
| 主体材质 | 316L |
| 驱动方式 | Solenoid control |
| Flow rate | 50 SLM |
| Working pressure difference range | 0.05 – 0.5 MPa |
| Withstand pressure | 1 MPa |
| 环境温度 | 5 °C – 45 °C |
| Helium leak rate | < 1 × 10⁻⁶ Pa·L/s |
| Operating power supply | 0 – 24V DC, ≤ 5 W |
| Inlet and outlet port fittings | Φ6 / Φ8 / Φ10 (optional as required) |
| 型号示例 | VAvat-DJ2CV-UG6.0~10.0 · VAvat-DJ2CV-UGY4 · VAvat-DJ2CV-UF4 · VAvat-DJ2CV-UM4 |
