VAvat · 迷你超高真空插板阀

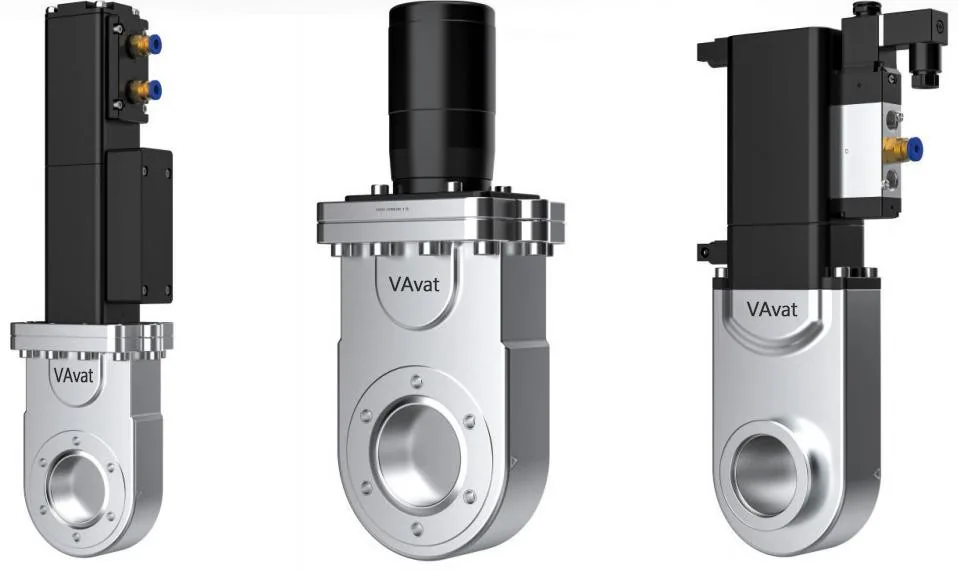

VAvat K1213-12 迷你超高真空插板阀
其它写法: K121312
关键规格
型号K1213-12
品牌VAvat
接口 / 连接ISO-KF · CF-F
配件匹配 · 询价确认
太星有对应替代型号 — 性能相当,价格低得多 →
价格询盘 支持B2B批量
交期随报价确认产品描述
For ultra-high vacuum applications or other demanding applications. Optional: manual, pneumatic normally closed, pneumatic normally open, pneumatic double-acting Material: Aluminum alloy / stainless steel. Sealing: Rubber O-ring seal or bellows seal. Opening diameters: DN25~50.
技术参数
| 系列 | VAvat |
|---|---|
| 通径 | DN25~50 |
| 主体材质 | Aluminum alloy / stainless steel |
| 驱动方式 | pneumatic double-acting / manual / normally closed with solenoid valve |
| 法兰类型 | ISO-KF · CF-F |
| 密封方式 | Rubber O-ring seal or bellows seal |
| 漏率 | < 5 × 10⁻¹⁰ mbar·L/s (valve body); < 1 × 10⁻⁹ mbar·L/s (valve seat) |
| 压力范围 | 1 × 10⁻¹⁰ mbar to 2 bar |
| 阀门压差 | ≤ 2 bar |
| 开启瞬间压差 | ≤ 30 mbar |
| 首次保养前循环次数 | 50,000 |
| 工作温度 | Valve body ≤ 200 °C; drive components ≤ 150 °C; solenoid valve ≤ 50 °C; position indicator ≤ 80 °C |
| 部件材质 | Valve body / bonnet: high-density corrosion-resistant aluminum alloy; spool assembly: SUS 304, aluminum alloy |
| 安装方向 | Any orientation |
| 压缩空气压力 | 0.5 MPa – 0.7 MPa |
| 位置反馈 | Imported wear-resistant elastic switch; AC ≤ 250 V / DC ≤ 50 V; AC ≤ 2.0 A / DC ≤ 1.2 A |
| 型号示例 | VAvat-K1213-12-DN25~50 (ISO-KF, pneumatic double-acting) · VAvat-K3144-12-B-DN25~50 (Manual) · VAvat-K1211-52024-B-DN25~50 (CF-F, normally closed with solenoid valve) · VAvat-K1213-52-B-DN25~50 (CF-F, pneumatic double-acting) |
