VAvat · 高真空大型摆阀

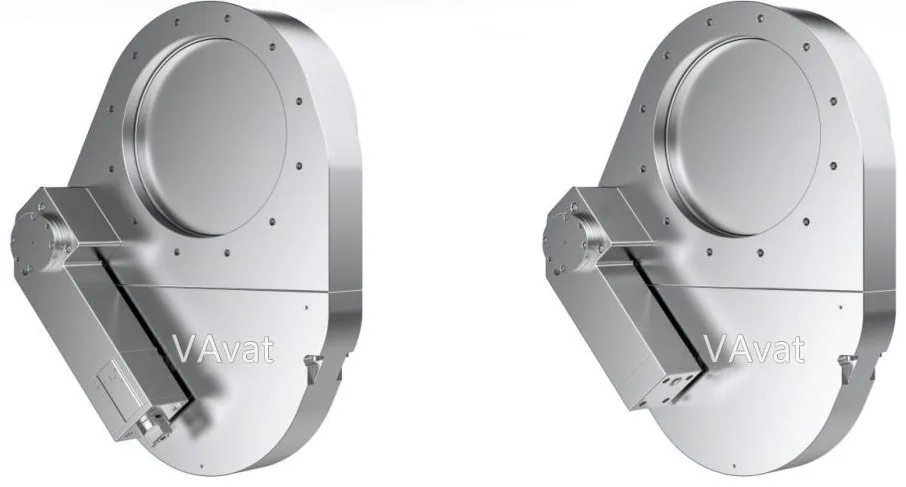

VAvat D1111-31-DN400~1250 高真空大型摆阀
关键规格
型号D1111-31-DN400~1250
品牌VAvat
接口 / 连接ISO-F · JIS B
配件匹配 · 询价确认
太星有对应替代型号 — 性能相当,价格低得多 →
价格询盘 支持B2B批量
订货发送型号或产品照片,我们将确认准确配置。
产品描述
Suitable for applications requiring compact design space, especially for large-scale coating and LCD manufacturing systems. Pneumatic actuator (with normally closed spring); three-position pneumatic actuator (with normally closed spring); double-acting actuator Material: Aluminum alloy (materials optional). Sealing: O-ring seal. Opening diameters: DN400~1250.
技术参数
| Series | VAvat |
|---|---|
| Opening diameter / bore | DN400~1250 |
| Main material | Aluminum alloy (materials optional) |
| Driver | pneumatic normally closed / 3-position pneumatic, normally closed / pneumatic double-acting |
| Flange type | ISO-F · JIS B |
| Sealing method | O-ring seal |
| Leakage rate | 1 × 10⁻⁹ mbar·L/s |
| Pressure range | 1 × 10⁻⁸ mbar – 1.2 bar |
| Differential pressure on the valve plate | ≤ 1.2 bar |
| Opening differential pressure | ≤ 30 mbar |
| Recommended maintenance cycle | 100,000 cycles (unheated, clean conditions) |
| Operating temperature | Valve body ≤ 120 °C; drive components ≤ 80 °C; position indicator ≤ 80 °C |
| Opening / closing time | ≤ 5 s (depends on compensation pressure of the compressed air) |
| Material of components | Valve body / bonnet / plate: aluminum alloy |
| Mounting position | Any orientation |
| Compressed air range | 0.55 MPa – 0.7 MPa |
| Position feedback | DC ≤ 24 V, DC ≤ 100 mA |
| Example model numbers | VAvat-D1111-31-DN400~1250 (pneumatic normally closed) · VAvat-D5111-31-DN400~1250 (3-position pneumatic, normally closed) · VAvat-D1113-31-DN400~1250 (pneumatic double-acting) |
常见问题
D1111-31-DN400~1250 的进排气口是什么接口?
D1111-31-DN400~1250 的接口:Flange type ISO-F · JIS B。
D1111-31-DN400~1250 怎么问价格和交期?
在本页询价表里填型号和数量,或发邮件到 vacuum@xiamenbest.com。24 小时内回价格和交期,从中国厦门发全球。
需要确认准确配置?
告知应用、目标真空度和电压,我们将匹配设备或配件并提供正式报价。
太星有对应替代型号
我们生产对应替代型号 — 性能相当,价格低得多
太星是拥有 20,000 平方米自有工厂、深耕十六年的真空设备生产厂家。我们生产与这台进口设备工况相当的产品,出厂价直供。请提供您的工况(气体、压力范围、流量),我们匹配型号并报价。
