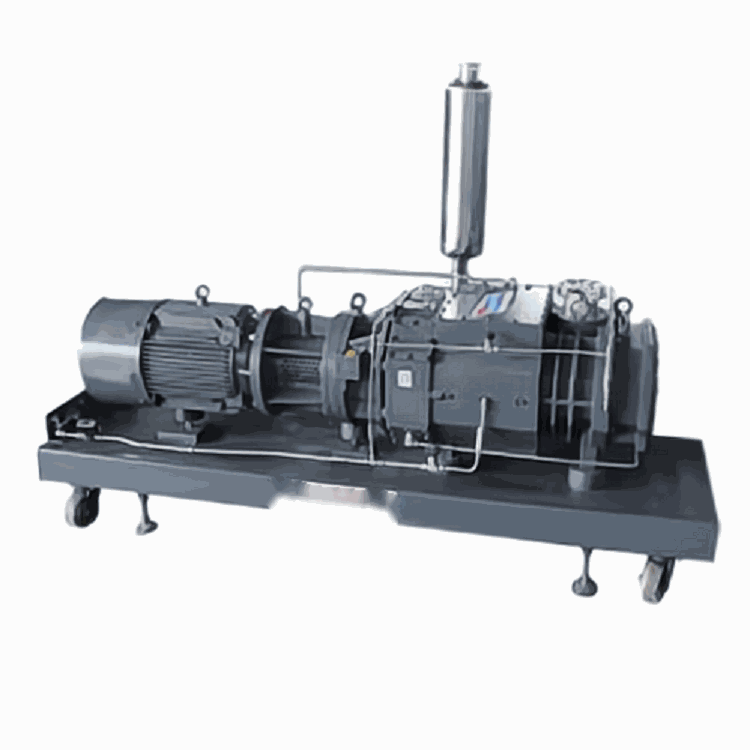

Mibay Water cooling TXLGB140 series 干式螺杆真空泵
关键规格
产品描述
## Water-cooled TXLGB140 series dry screw vacuum pump Dry screw vacuum pumps operate with two screw rotors rotating in opposite directions. This mechanism traps the medium to be pumped between the cylinder and the screw chambers, transporting it to the gas discharge. The advanced screw design results in lower electrical energy consumption compared to standard designs and reduces the heat load on the compressed gas. Cooling is achieved via high-performance air cooling (eliminating the need for cooling water) or an indirect cooling method that ensures uniform temperatures throughout the pump body, eliminating cold spots and providing a thermally stable water jacket. The advanced screw design allows for best-in-class hydrogen pumping capabilities. Water cooling is available via direct water cooling or radiator cooling with air-cooled heat exchangers. Inquire Now
技术参数
| Pumping Speed | L/s | 40 | 70 | 125 | 180 | 220 | 305 | 416 |
|---|---|
| m³/h | 140 | 280 | 450 | 650 | 650 | 790 | 1080 |
| Ultimate Pressure（50Hz） | Pa | 3~30Pa |
| Maximum exhaust pressure | bar | 1.2 |
| Motor Power（50Hz） | Kw | 4 | 7.5 | 11 | 15 | 18.5 | 22 | 22 |
| Rotate Speed | rpm | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
| interface | G3/8” | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” |
| outlet diameter | mm | DN32 | DN32 | DN40 | DN50 | DN50 | DN65 | DN65 |
| water Cooling Mode | flow | m³/min | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.85 | 0.85 |
| pressure | MPa | 0.1～0.2 |
| Outlet water temperature | ℃ | ≤40 |
| Noise Level | dB | ≤75 | ≤75 | ≤76 | ≤76 | ≤76 | ≤80 | ≤85 |
| Weight | Kg | 230 | 320 | 500 | 680 | 780 | 820 | 100 |
常见问题
Water cooling TXLGB140 series 的抽速是多少?
Water cooling TXLGB140 series 的抽速:Pumping Speed L/s | 40 | 70 | 125 | 180 | 220 | 305 | 416。
Water cooling TXLGB140 series 的极限压力是多少?
Water cooling TXLGB140 series 的极限压力:Ultimate Pressure（50Hz） Pa | 3~30Pa。
Water cooling TXLGB140 series 的进排气口是什么接口?
Water cooling TXLGB140 series 的接口:outlet diameter mm | DN32 | DN32 | DN40 | DN50 | DN50 | DN65 | DN65 · Outlet water temperature ℃ | ≤40。
Water cooling TXLGB140 series 需要多大功率/什么电源?
Water cooling TXLGB140 series 的功率/电源:Motor Power（50Hz） Kw | 4 | 7.5 | 11 | 15 | 18.5 | 22 | 22。
Water cooling TXLGB140 series 的外形尺寸和重量是多少?
Water cooling TXLGB140 series:Weight Kg | 230 | 320 | 500 | 680 | 780 | 820 | 100。
Water cooling TXLGB140 series 怎么问价格和交期?
在本页询价表里填型号和数量,或发邮件到 vacuum@xiamenbest.com。24 小时内回价格和交期,从中国厦门发全球。
需要确认准确配置?
告知应用、目标真空度和电压,我们将匹配设备或配件并提供正式报价。
