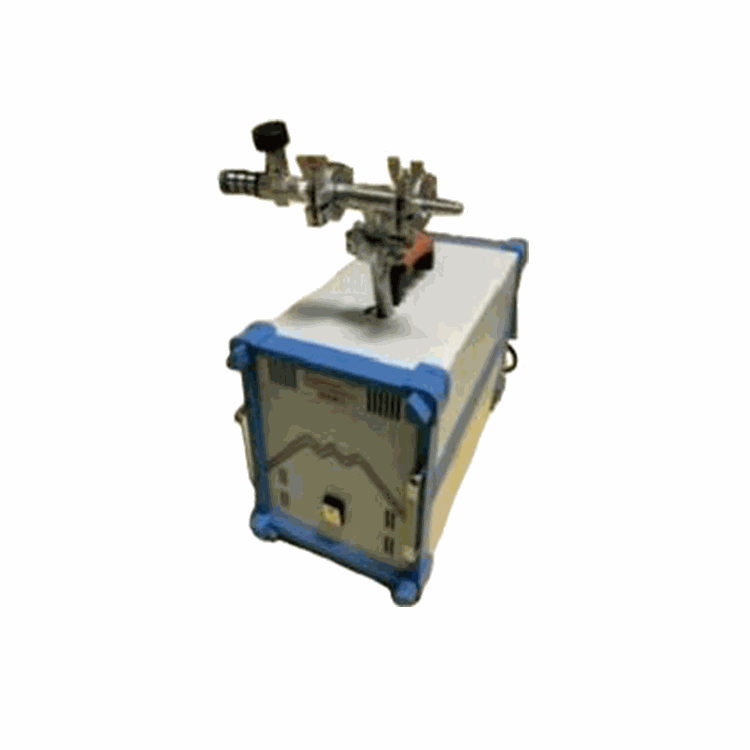

Mibay TXT 005100 ultimate vacuum to 0.02 mbar Dry chemical corrosion resistant spiral Vacuum
关键规格
产品描述
Dry chemical corrosion resistant spiral Vacuum Pump TXT Series (ultimate vacuum to 0.02 mbar) Dry operation of the vacuum pump, chemical corrosion resistance as diaphragm vacuum pump also excellent Can completely replace the diaphragm vacuum pump and two-stage rotary plate vacuum pump (commonly known as oil pump) in most applications characteristic: Dry operation, this series of high vacuum is less than 0.02 mbar (2Pa) Excellent chemical corrosion resistance, the movement is PEEK solid material and spiral diu le iron plated PTFE, coated carved molding parts PTFE outlet top pump head with check valve of PTFE material inside There is no sealing strip between the upper and lower spiral, which solves the problem of corrosion resistance Bbrushless DC motor, laboratory grade explosion-proof safety level - Power:: 200(220V) - Item No: TXT 005100 - Weight: 11 - Noise Level: 57 - Limit Vacuum::
技术参数
| TXT 60120 | <60 | 7.2120.0 | 200(220V) | 56 | 10.5 | DN16KF | Large container extraction filter, solid phase extraction |
|---|---|
| TXT 0150 | <0.1 | 2.948.0 | 180(220V) | 54 | 10.8 | DN16KF | Low-temperature vacuum distillation, parallel evaporation, vacuum oven, concentrated by centrifugation,Pipe furnace and other supporting facilities |
| TXT 00550 | <0.05 | 2.948.0 | 180(220V) | 56 | 11 | DN16KF | Frozen dryer matching |
| TXT 01100 | <0.1 | 5.896.0 | 200(220V) | 57 | 11.0 | DN16KF | Low-temperature vacuum distillation, parallel evaporation, vacuum oven, concentrated by centrifugation,Pipe furnace and other supporting facilitiesPipe furnace and other supporting facilities |
| TXT 005100 | <0.05 | 5.896.0 | 200(220V) | 57 | 11 | DN16KF | Frozen dryer matching |
