Mibay Triplex oil less claw lab vacu 爪式真空泵

产品描述

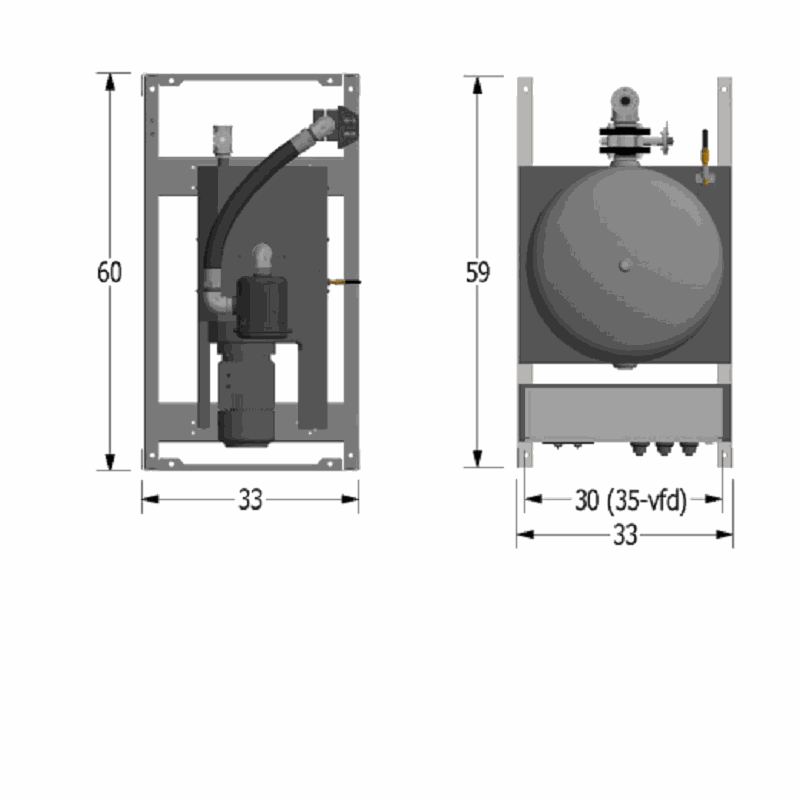

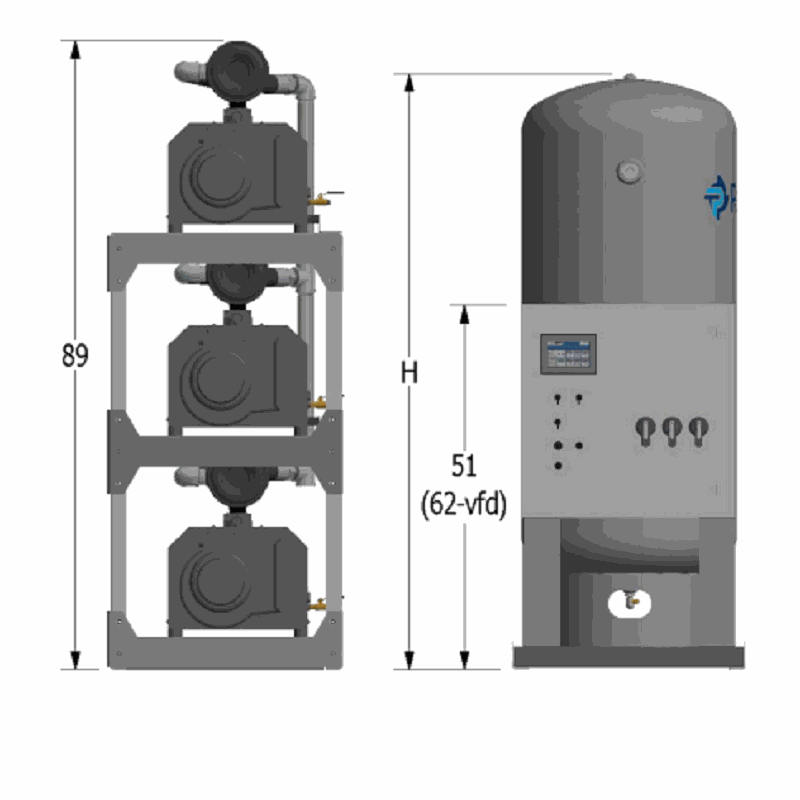

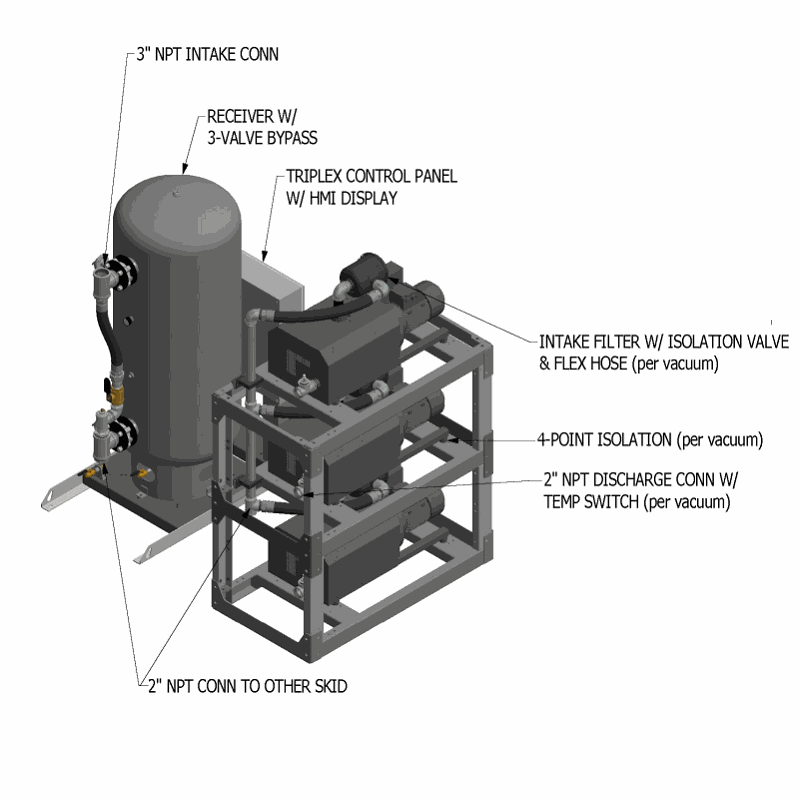

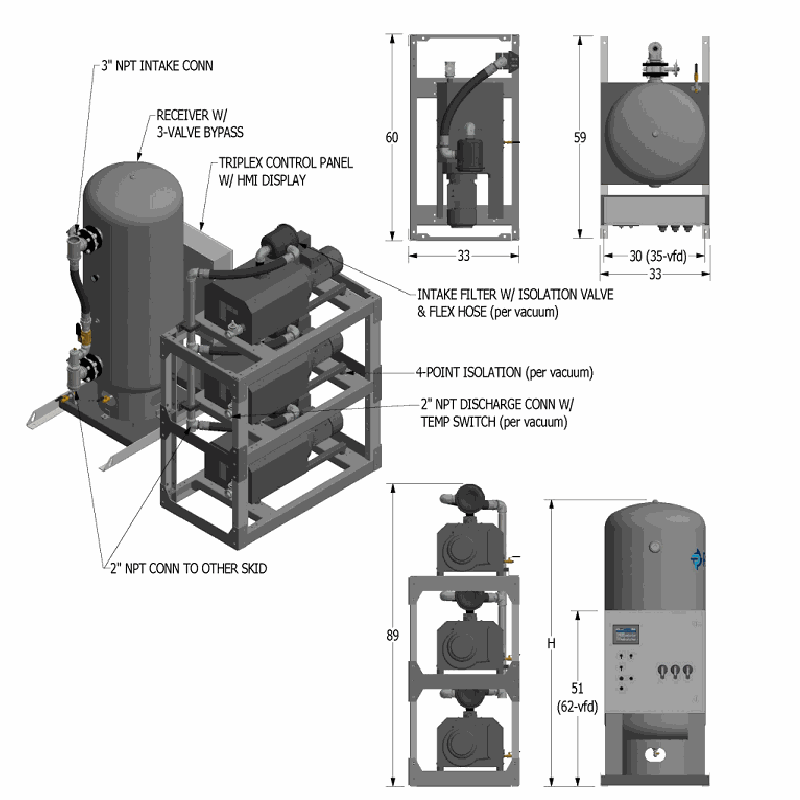

## Triplex oil less claw lab vacuum package 7.5 HP Triplex “Oil‐Less” Claw Lab Vacuum Package 7.5 HP (Fixed Speed or VFD ) Base Mount Modular with Automatic Purge Control Inquire Now Product categories - Dry vacuum pump dry scroll pumps - Dry screw Pumps - Roots pumps - Claw vacuum pump - screw vacuum pump - Oil Vacuum pump Two stage Rotary Vane Pumps - Single-stage Rotary Vane Pumps - Oil-Free Scroll Vacuum Pump - Oil diffusion pump - Helium Leak Detector helium mass spectrometer leak detector - Leak detector accessories - Leak Detector Repair Parts - Mass spectrometer - Vacuum Leak Detection Equipment - Vacuum Gauge - Vacuum Pump System Turbo Molecular Vacuum Pump - Custom Vacuum Systems - Vacuum pump Oil - Vacuum Accessories compatible part molecular pump non-standard maintenance parts - Vacuum pump maintenance and repair accessories - Vacuum Value - Other Equipments how can we help you You can contact us any way that is convenient for you. We are available 24/7 via email or telephone. Contact Us New Products - SX Liquid Ring Monoblock Vacuum Compressors for Industrial Applications Read More - Semi-automatic Leak Detection Box TLDB-085 for High-Precision Chip Packaging and Vacuum Systems Read More - TPR500 5LED Digital Display Pirani Vacuum Gauge for Precision Low Vacuum Monitoring Read More - CFV 106 Pyrani/Cold Cathode Composite Vacuum Gauge for Wide-Range Vacuum Measurement Read More - RCP230N Handheld Pirani Vacuum Gauge for Mobile Vacuum Measurement Read More - PVG 550 Membrane Resistor High-Precision Composite Vacuum Gauge for Vacuum Systems Read More - PRG-500 Digital Pirani Vacuum Gauge for Precise Medium and Low Vacuum Measurement Read More - RBP series resistance vacuum pressure transmission RBP-101 Read More - Product Details Vacuum Package  Three oil‐less rotary claw type vacuum pumps with inlet filter and isolation valve for each  ASME coded vacuum receiver with bypass and manual drain  Triplex control panel with automatic lead/lag controls  All components completely pre‐piped and pre‐wired to single point service conne ons (per module)  Vibration isolation mountings  Liquid tight conduit, fittings and jun on boxes for all control and power wiring  All interconne ng piping and wiring is completed and operationally tested prior to shipment (per module) Vacuum Pump  Oil‐less rotary claw pump  Direct‐driven through a shaft coupling  Air‐cooled  End (ultimate) vacuum = 28" Hg  Dry‐running, with two claw‐type, non‐conta ng rotors  Sealing fluid not required  Virtually maintenance‐free operation  High discharge temperature switch  Oil change required at approximately 5,000 operating hour intervals in the gearbox only  Built‐in, anti‐suck‐back valve mounted at the pump inlet  2 micron inlet filter for removal of particulates Vacuum Motor  NEMA rated  C‐face  TEFC  208 or 230/460V 3‐phase Vibration Isolation System  Vacuum and motor ‐ fully isolated from the package base by means of a four‐point, heavy duty, isolation system  Minimum of 95% isolation efficiency  Optional seismically restrained isolators at an additional cost Intake/Discharge Piping  Vacuum pumps are connected per module  Inlet check valve on each pump  Inlet isolation valve on each pump  Flexible connectors between pumps and manifold  Flexible connectors for inlet and discharge conne ons  Discharge flex connection shipped loose Vacuum Receiver  Vertical orientation with integrally mounted 3‐valve bypass and manual drain  ASME Code stamped  National Board Certified  Rated for a minimum 200 PSIG design pressure  Vacuum gauge  Manual drain System Health  Monitoring and Trending of key components to provide notification of potential issue with the Health of the System  Vacuum monitoring  Current monitoring for each motor  Ambient Temperature monitoring  Trending of pumps running Control System  Mounted and wired triplex control system  NEMA 12 and UL 508A labeled  75Lv only: Variable frequen
