Mibay · LGB30-FY(Permanent Magnet Version) Air Cooling Screw Vacuum Pump for Efficient Industrial Vacuum Applications

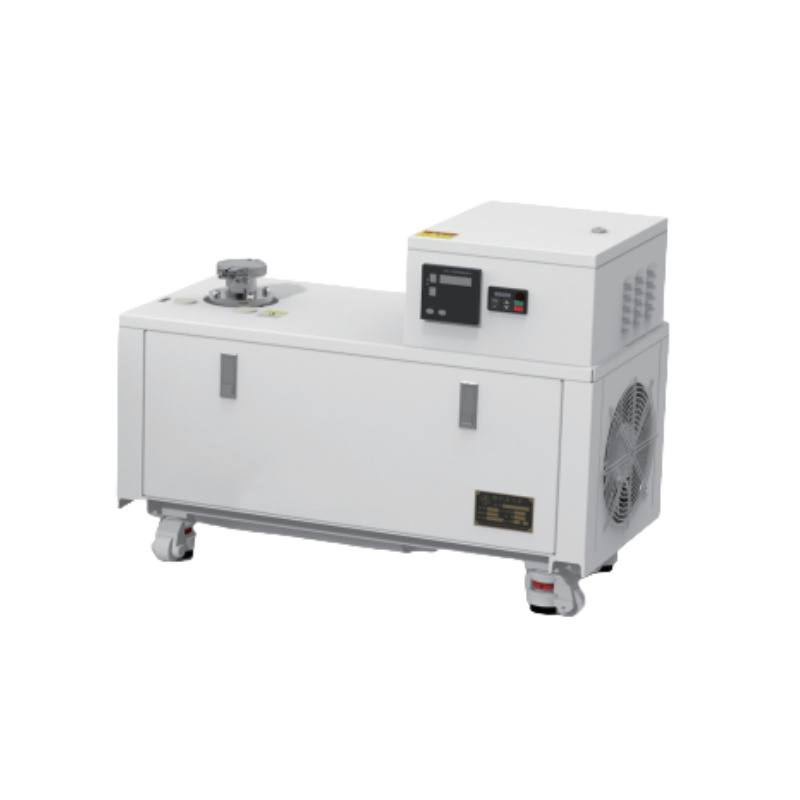

Mibay LGB30-FY (Permanent Magnet Version) Air Cooling Screw Vacuum Pump
关键规格
型号LGB30-FY
品牌Mibay
抽速30 L/s | 30 L/s
极限真空≤0.5Pa | ≤0.5Pa
功率2.2 kW | 2.2 kW
接口 / 连接KF50/50mm | KF50/50mm
配件匹配 · 询价确认
价格询盘 支持B2B批量
交期随报价确认产品描述
LGB30-FY(Permanent Magnet Version) Air Cooling Screw Vacuum Pump, available with a standard motor or a permanent magnet frequency conversion motor, delivers high-efficiency vacuum performance without the need for cooling water. ISO9001:2015 certified, ensuring reliability and durability for industrial applications. - Emai: vacuum@xiamenbest.com - WhatsApp:: WhatsApp: +86 13959235484
技术参数
| 抽速 (50Hz) | 30 L/s | 30 L/s |
|---|---|
| 极限压力 | ≤0.5Pa | ≤0.5Pa |
| Max.Exhaust Pressure | 1.2 bar | 1.2 bar |
| 电机功率 (50Hz) | 2.2 kW | 2.2 kW |
| Rotating Speed (50Hz) | 2900 rpm | 2900 rpm |
| 进气口径 | KF50/50mm | KF50/50mm |
| 出气口径 | 40mm | 40mm |
| Lubricant(Suction Side) | 450mL(1 00#Vacuum 0il) | 450mL(100#Vacuum Oil) |
| Lubricant(Exhaust Side) | 15.5mL | 15.5mL |
| Inlet Gas Temperature Range | 5~50°C | 5~50°C |
| Exhaust Gas Temperature | ≤100°C | ≤100°C |
| 噪音 | ≤74dB(A) | ≤74dB(A) |
| 重量 (Including Silencer &Motor) | 200kg | 210kg |
