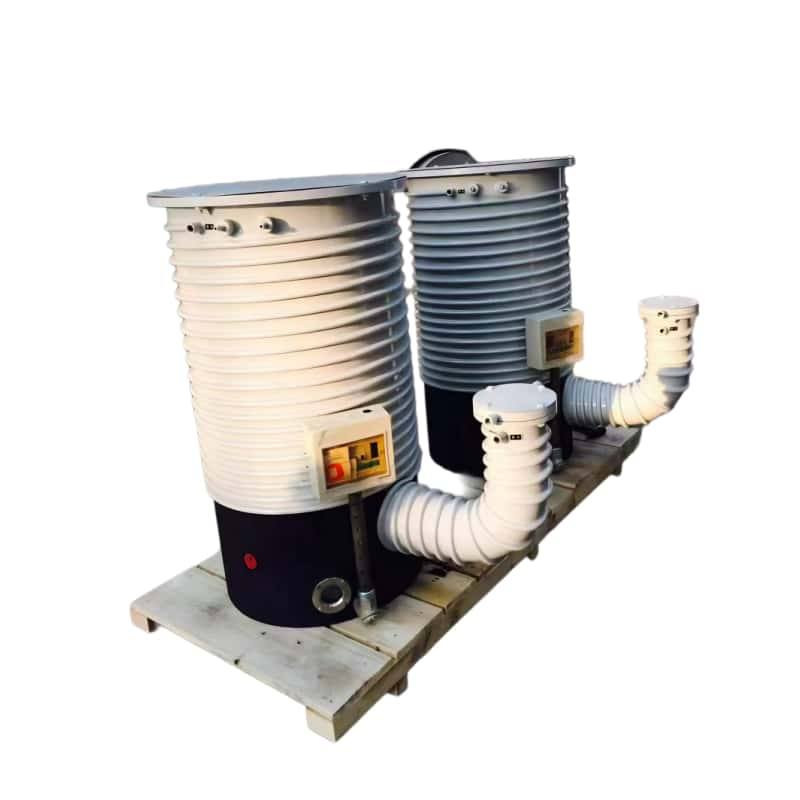

Mibay High Vacuum Oil Diffusion Pump 扩散泵
关键规格
产品描述
## High Vacuum Oil Diffusion Pumps: KC, KT, and DP Series for Industrial Applications Discover Mibay Vacuum’s KC, KT, and DP Series high vacuum oil diffusion pumps, delivering ultimate pressures down to 2.0×10⁻⁵ Pa, high pumping speeds up to 62,700 L/s, and low oil return rates. Ideal for aerospace, vacuum furnaces, and semiconductor coating, these pumps ensure efficient, reliable vacuum performance. Inquire Now Product categories - Dry vacuum pump dry scroll pumps - Dry screw Pumps - Roots pumps - Claw vacuum pump - screw vacuum pump - Oil Vacuum pump Two stage Rotary Vane Pumps - Single-stage Rotary Vane Pumps - Oil-Free Scroll Vacuum Pump - Oil diffusion pump - Helium Leak Detector helium mass spectrometer leak detector - Leak detector accessories - Leak Detector Repair Parts - Mass spectrometer - Vacuum Leak Detection Equipment - Vacuum Gauge - Vacuum Pump System Turbo Molecular Vacuum Pump - Custom Vacuum Systems - Vacuum pump Oil - Vacuum Accessories compatible part molecular pump non-standard maintenance parts - Vacuum pump maintenance and repair accessories - Vacuum Value - Other Equipments how can we help you You can contact us any way that is convenient for you. We are available 24/7 via email or telephone. Contact Us New Products - SX Liquid Ring Monoblock Vacuum Compressors for Industrial Applications Read More - Semi-automatic Leak Detection Box TLDB-085 for High-Precision Chip Packaging and Vacuum Systems Read More - TPR500 5LED Digital Display Pirani Vacuum Gauge for Precision Low Vacuum Monitoring Read More - CFV 106 Pyrani/Cold Cathode Composite Vacuum Gauge for Wide-Range Vacuum Measurement Read More - RCP230N Handheld Pirani Vacuum Gauge for Mobile Vacuum Measurement Read More - PVG 550 Membrane Resistor High-Precision Composite Vacuum Gauge for Vacuum Systems Read More - PRG-500 Digital Pirani Vacuum Gauge for Precise Medium and Low Vacuum Measurement Read More - RBP series resistance vacuum pressure transmission RBP-101 Read More - Product Details With over a decade of experience in vacuum system optimization for industries like aerospace and semiconductor manufacturing, I know the importance of reliable, high-performance vacuum pumps. Mibay Vacuum’s KC, KT, and DP Series high vacuum oil diffusion pumps are designed to meet the rigorous demands of high and ultra-high vacuum environments. Offering ultimate pressures as low as 2.0×10⁻⁵ Pa, pumping speeds up to 62,700 L/s, and low oil return rates, these pumps are trusted solutions for vacuum heat treatment, coating, and research applications. ## ## Why Choose Mibay Vacuum’s Oil Diffusion Pumps? Since 2009, Mibay Vacuum has been a leader in vacuum technology, delivering pumps that power critical processes in aerospace, metallurgy, and scientific research. The KC, KT, and DP Series stand out for their high pumping speeds, low oil backflow, and durable designs. Whether it’s the KC Series’ wide pumping range, the KT Series’ enhanced convex cavity design, or the DP Series’ energy-efficient internal heating, these pumps ensure reliable performance in demanding vacuum systems. ## Key Benefits · High Vacuum Performance: Achieve ultimate pressures down to 2.0×10⁻⁵ Pa, meeting ISO-compliant standards for high vacuum applications. · Superior Pumping Speeds: Up to 62,700 L/s (DP Series), enabling faster evacuation and higher throughput. · Low Oil Backflow: Rates as low as 10⁻⁵ mg/cm²·min (DP Series), minimizing contamination in cleanroom environments. · Energy Efficiency: Internal heating (DP Series) and optimized designs reduce power consumption by up to 20%. · Versatile Applications: Suitable for aerospace, vacuum furnaces, semiconductor coating, and research labs. ## ## Key Features Based on technical specifications and industry experience, here are the standout features of the KC, KT, and DP Series: 1. KC Series: Wide-Ranging Performance o Broad vacuum range (1.3×10⁻¹ to 10⁻⁵ Pa) for diverse applications. o High pumping speeds (7,000–35,000 L/s) at 1.3×10
技术参数
| Ultimate Pressure (Pa) | 2.0×10⁻⁵ | 2.0×10⁻⁵ |
|---|---|
| Pumping Rate (L/s) | ≥1,100 | ≥2,100 | ≥4,500 | ≥7,500 | ≥16,500 | ≥24,000 |
| Critical Foreline Pressure (Pa) | ≥30 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 |
| Oil Return Rate (mg/cm²·min) | ≤1.5×10⁻³ | ≤1.5×10⁻³ | ≤1.5×10⁻³ | ≤1.5×10⁻³ | ≤1.5×10⁻³ |
| Heating Power (kW) | 1.2 | 1.8 | 3 | 4.5 | 8.4 | 15 |
| Cooling Water Consumption (L/h) | 140 | 260 | 480 | 620 | 850 | 1,200 |
| Pump Oil Consumption (L) | 0.4 | 0.55 | 1.5 | 3.2 | 7 | 10 |
| Nominal Pumping Speed (L/s, with trap) | 19,500 | 33,000 |
| Power Consumption (kW) | Max 14.4 | Max 16.2 |
| Cooling Water Flow Rate (L/min) | 10 | 10 |
| Warm-Up Time (min) | ~50 | ~50 |
常见问题
High Vacuum Oil Diffusion Pump 的抽速是多少?
High Vacuum Oil Diffusion Pump 的抽速:Nominal Pumping Speed (L/s, with trap) 19,500 | 33,000。
High Vacuum Oil Diffusion Pump 的极限压力是多少?
High Vacuum Oil Diffusion Pump 的极限压力:Ultimate Pressure (Pa) 2.0×10⁻⁵ | 2.0×10⁻⁵。
High Vacuum Oil Diffusion Pump 需要多大功率/什么电源?
High Vacuum Oil Diffusion Pump 的功率/电源:Heating Power (kW) 1.2 | 1.8 | 3 | 4.5 | 8.4 | 15 · Power Consumption (kW) Max 14.4 | Max 16.2。
High Vacuum Oil Diffusion Pump 怎么问价格和交期?
在本页询价表里填型号和数量,或发邮件到 vacuum@xiamenbest.com。24 小时内回价格和交期,从中国厦门发全球。
需要确认准确配置?
告知应用、目标真空度和电压,我们将匹配设备或配件并提供正式报价。
