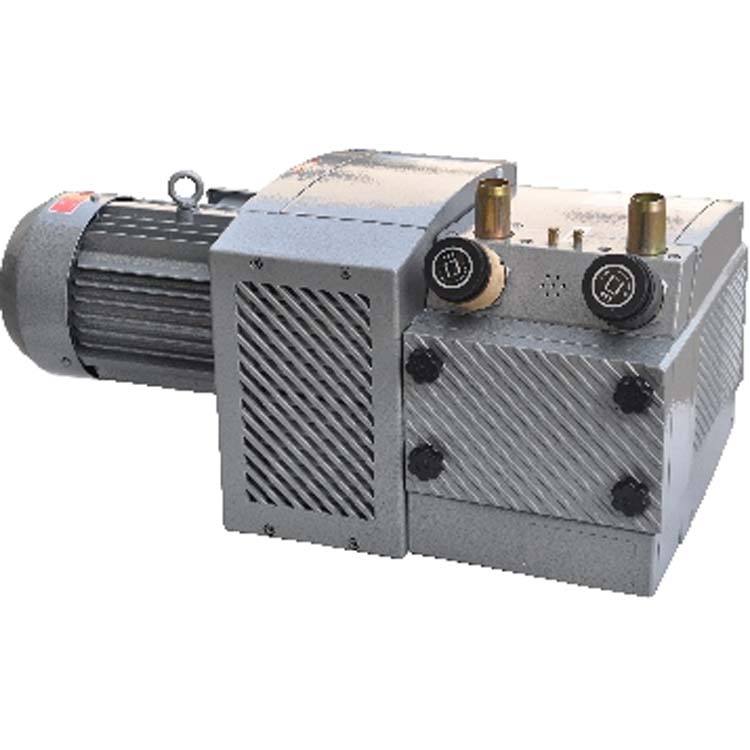

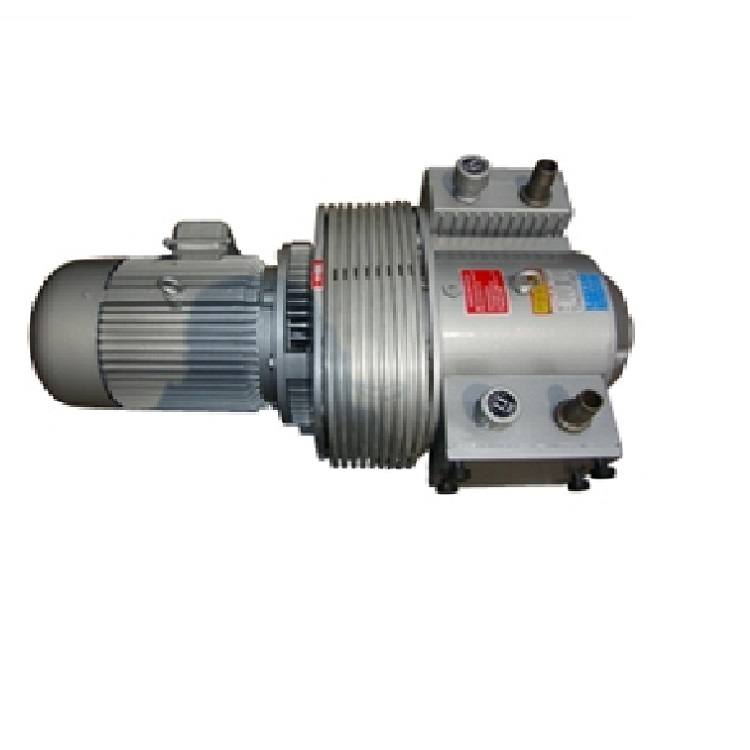

Mibay · Composite air pump printing machine TXBW-40B single-stage rotary pump
Mibay TXBW-40B Composite air pump printing machine single-stage rotary pump
关键规格
型号TXBW-40B
品牌Mibay
配件匹配 · 询价确认
价格询盘 支持B2B批量
交期随报价确认产品描述
TXBW -B series self-lubricating pressure Pump has the advantages of exhaust purity, low noise, reliable operation. The pump works on the principle of the scientific cooling and equipped with a unique cooling device, the discharge of compressed air temperature is very ideal. Widely used in printing and packaging industry in the flake material conveying and drying, food processing of powder material transportation and liquid mixing in the field of sewage treatment, etc.
技术参数
| Item | Unit | TXBW 40B | TXBW 80B | TXBW 140B |
|---|---|
| 处理量 | m³/h | 40 | 80 | 140 |
| Rated exhaust pressure | kPa | 50 | 50 | 50 |
| Rated suction vacuum | KPa | -50 | -50 | -50 |
| Motor rating | kw | 1.5 | 3.0 | 5.5 |
| 电机转速 | r/min | 1420 | 1420 | 1420 |
| Noise leve l | dB(A) | 80 | 82 | 85 |
| Temperateness | ℃ | 65 | 75 | 85 |
| Dialog com meting pipe | mm | 27 | 27 | 42 |
| 重量 | kg | 65 | 110 | 150 |
| Overall dimensions | mm | 737 X 377 X 295 | 790 X 430 X 355 | 945 X 487 X 372 |
